⑴ Installed in 19-inch racks and cabinets for centralized management of module boxes;

⑵ Increase the number of ports through modular design, providing high-density fiber connection capabilities;

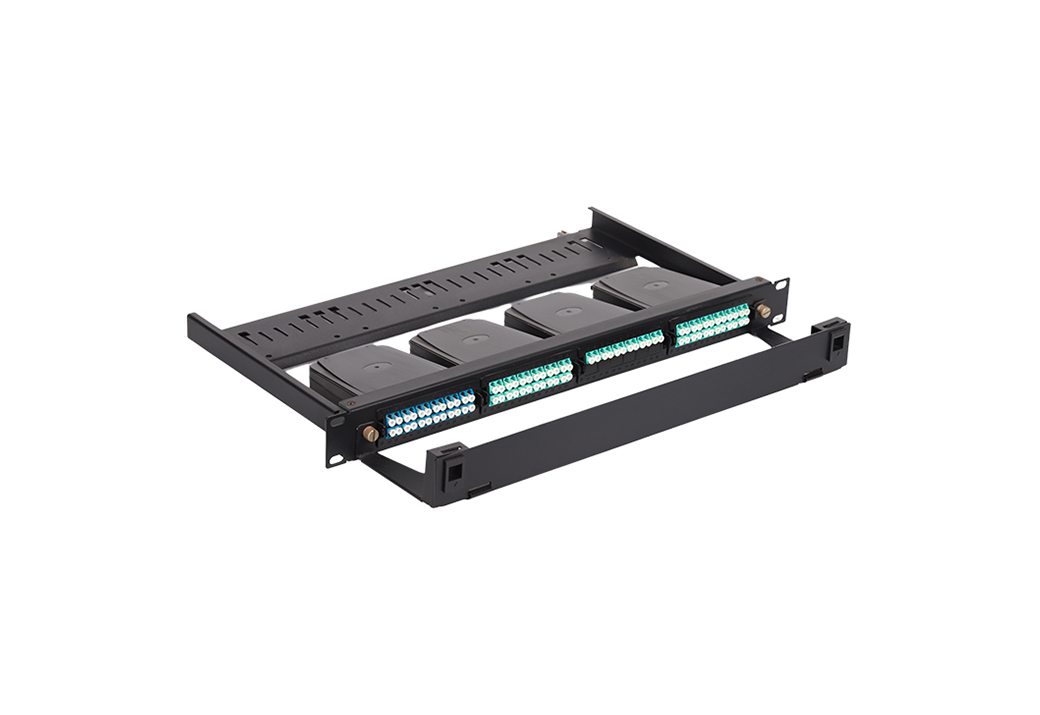

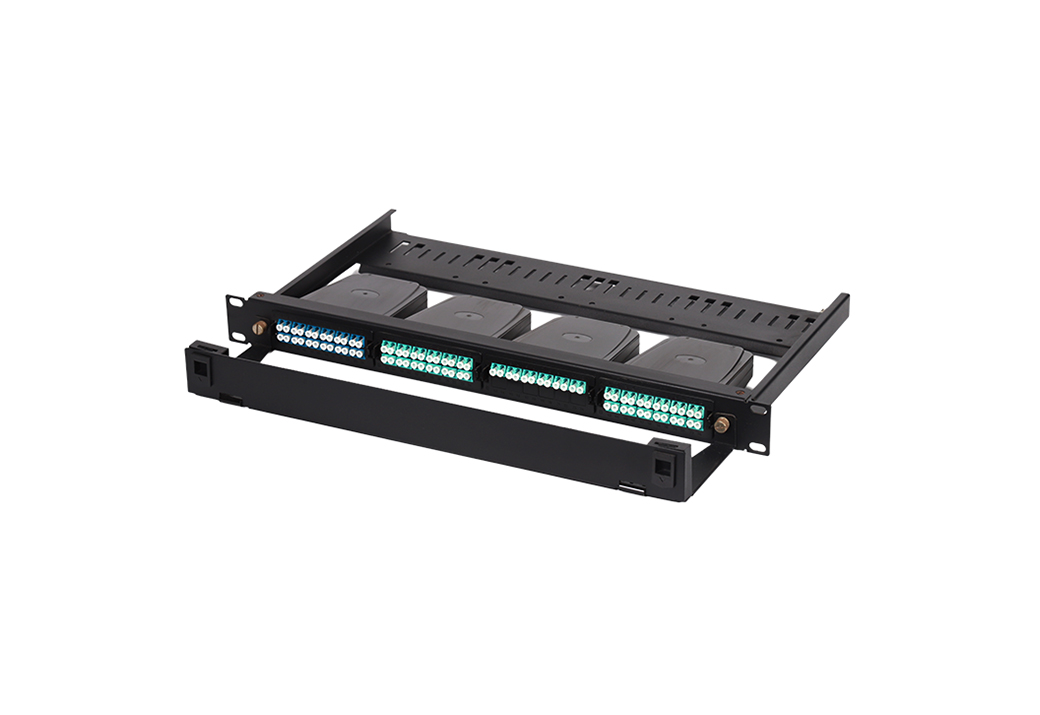

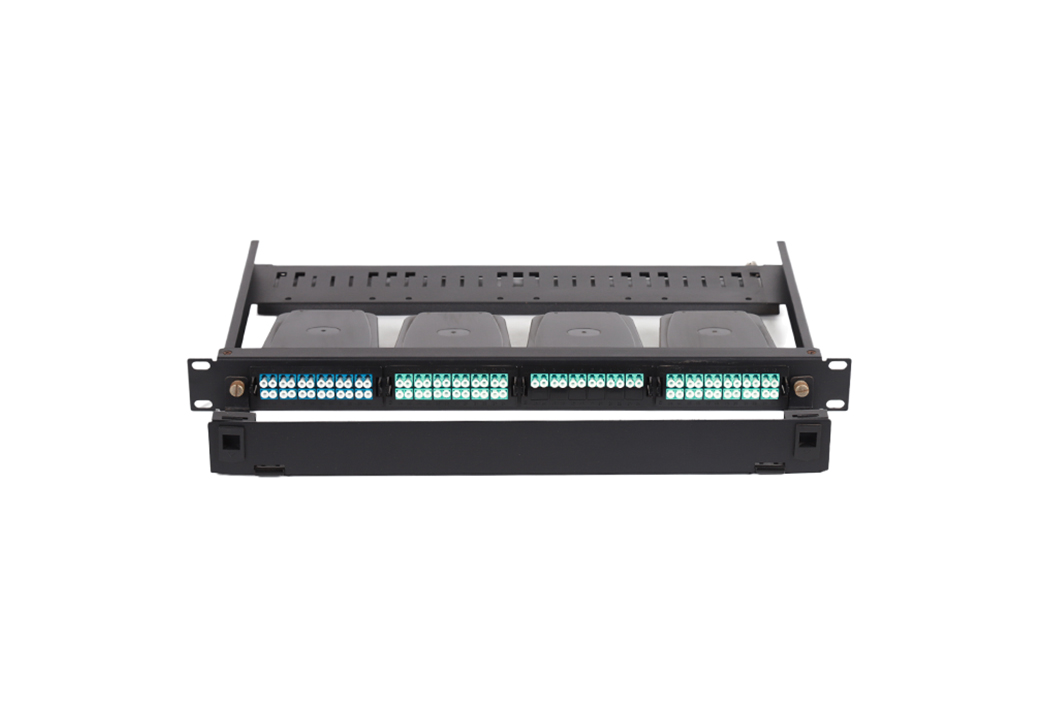

⑶ MPO 1U fiber distribution box can install 4 MPO pre-terminated boxes. The maximum number of fiber cores that can be managed by installing a duplex LC adapter in the termination box is 96 cores, and the maximum number of fiber cores that can be managed by installing a simplex SC adapter in the termination box is 48 cores. If an MPO adapter board is installed, the maximum number of fiber cores that can be managed is 288 cores;

⑷ MPO 2U fiber distribution box can install 8 MPO pre-terminated boxes. The maximum number of fiber cores that can be managed by installing a duplex LC adapter in the termination box is 192 cores, and the maximum number of fiber cores that can be managed by installing a simplex SC adapter in the termination box is 96 cores. If an MPO adapter board is installed, the maximum number of fiber cores that can be managed is 576 cores;

⑸ MPO 3U fiber distribution box can be installed with 12 MPO pre-terminated boxes. The maximum number of fiber cores that can be managed by installing LC adapter in the termination box is 288 cores. The maximum number of fiber cores that can be managed by installing simplex SC adapter in the termination box is 144 cores. If MPO adapter is installed, the maximum number of fiber cores that can be managed is 864 cores;

⑹ Made of high-quality cold-rolled steel plate;

⑺ After strict degreasing, pickling, anti-rust phosphating, and pure water cleaning, the plate is electrostatically sprayed. The spraying thickness is 80μm-100μm, which meets the European ROHS environmental protection standards;

⑻ The fiber distribution frame design includes a cable management frame and label strips;

⑼ The distribution frame is easy to install and manage;

⑽ It is more than four times the density of traditional fiber distribution frames, which greatly saves cabinet space, improves cabinet utilization, and creates value for data center construction;

⑾ The modular structure is easy to upgrade and maintain;

⑿ Contains 1U/2U/3U cable management frame design.

Adopt MTP/MPO connectors to meet the growing demand for high-density wiring systems;

Each MTP/MPO connector corresponds to 12 (24 or more) LC connectors, and the 1U high wiring space can accommodate up to 72 LC fiber interfaces.

MPO fiber distribution box fiber distribution frame, used for fiber trunk connection and wiring management in MDA, IDA or HDA wiring areas of data centers, installed in 19-inch racks and cabinets, can be installed with pre-connected MPO switching modules or MPO adapter front panels.
