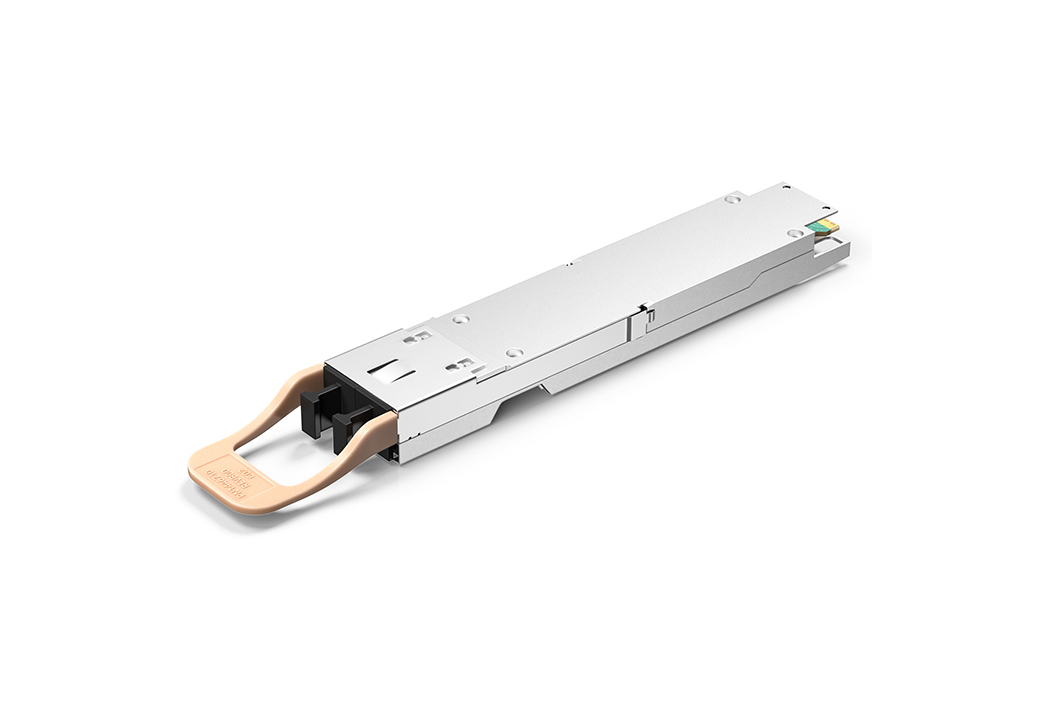

*OSFP 800G 2SR4 NDR 100M Optical Transceiver Module**
	Part Number	OSFP-800G-2*SR4
	Form Factor	OSFP
	Data Rate	800G
	Protocol	2*SR4
	Wavelength	850nm
	Achieve	100m
	Cable Type	MMF
	Connectors	2MPO/MTP
	Transmit power(dBm)	-4.6~4dBm
	Receiving sensitivity(dBm)	-6.4dBm
	Power consumption(W)	＜16W
	Operating case temperature	0~70℃
	Warranty	3 years

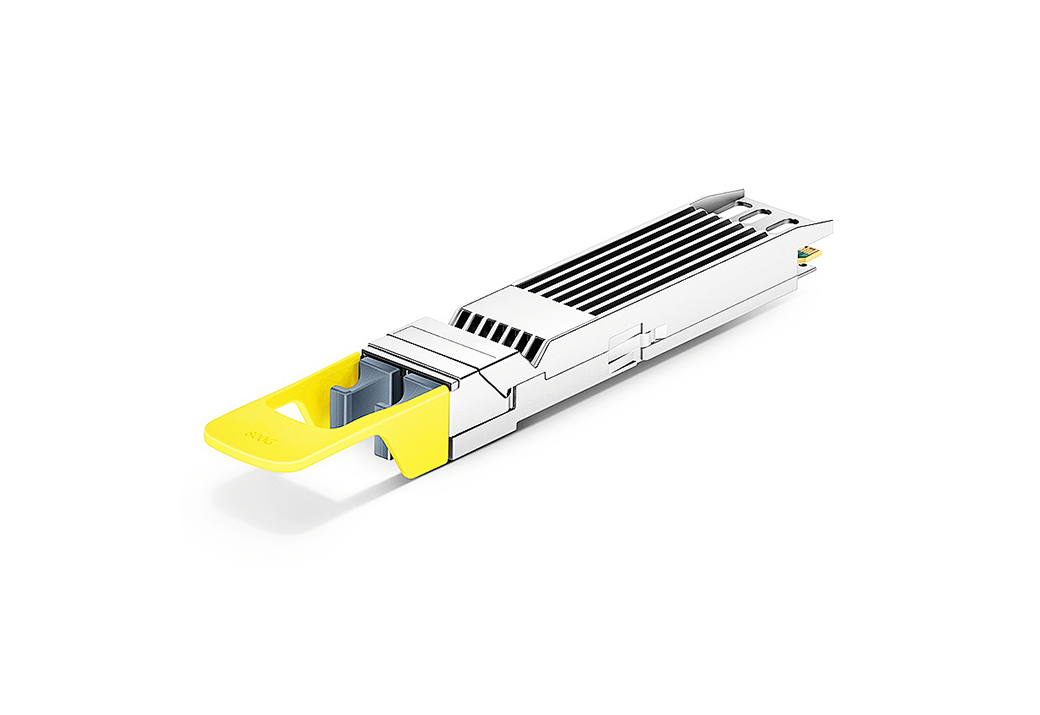

*OSFP 800G 2DR4 NDR 500M Optical Transceiver Module**
	Part Number	OSFP-800G-2*DR4
	Form Factor	OSFP
	Data Rate	800G
	Protocol	2*DR4
	Wavelength	1310nm
	Achieve	500m
	Cable Type	SMF
	Connectors	2MPO/MTP
	Transmit power(dBm)	-2.9~4.0dBm
	Receiving sensitivity(dBm)	-5.9dBm
	Power consumption(W)	＜16W
	Operating case temperature	0~70℃
	Warranty	3 years

*OSFP 800G 2SR4 NDR 100M Optical Transceiver Module**
	Product Features • Hot-swappable OSFP Type2 form factor • With enclosed top heatsink • Supports 2x425Gb/s aggregate bit rate • Power consumption <16W • RoHS compliant • Laser eye rating 1M • Case temperature range 0°C to +70°C (C temp) • Single 3.3V supply • IEEE 802.3db compliant • 8x100G PAM4 retiming 106.25Gb/s • PAM4 electrical interface IEEE 802.3ck compliant • Dual MPO-12 APC sockets • I2C management interface Applications • InfiniBand Hub • 800G SR8/VR8 with FEC Applications • 2x400G SR4/VR4 with FEC Applications • 8 x 100GbE Breakout Applications
*OSFP 800G 2DR4 NDR 500M Optical Transceiver Module**
	Product Features • Hot-swappable Type 2 OSFP form factor • Supports 850Gb/s aggregate bit rate • Power consumption <17W • RoHS-6 compliant • Case temperature range of 20°C to +60°C (extreme temp) or 0°C to +70°C (c temp) • Single 3.3V supply • IEEE 802.3bs compliant • 8x100G PAM4 retimed 106.25Gb/s PAM4 electrical, interface IEEE 802.3ck compliant • Dual MPO-12, APC sockets • I2C management interface Applications • 8 x 100GbE applications • 2 x 400GbE applications • 4 x 200Gbe applications • NDR Unlimited broadband
