QSFP-DD 400G SR8 100M Optical Transceiver Module | ||
 | Part Number | QSFP-DD 400G SR8 |
| Form Factor | QSFP56 | |
| Data Rate | 200G | |
| Protocol | FR4 | |
| Wavelength | 1310nm | |
Achieve | 2km | |
| Cable Type | SMF | |
| Connectors | 2LC | |
| Transmit power(dBm) | -4.2~4.7 | |
| Receiving sensitivity(dBm) | -6 | |
| Power consumption(W) | ＜5.5 | |
| Operating case temperature | 0~70℃ | |
| Warranty | 3 years | |

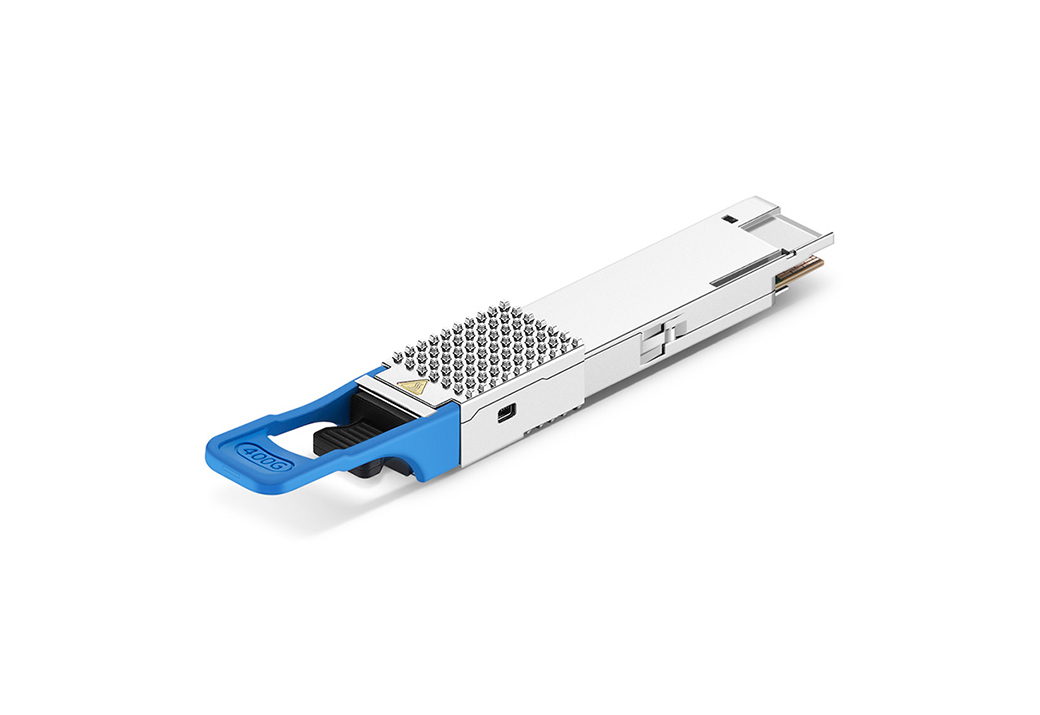

OSFP 400G SR4 NDR 100M Optical Transceiver Module | ||
 | Part Number | OSFP 400G SR4 |
| Form Factor | OSFP | |
| Data Rate | 400G | |
| Protocol | SR4 | |
| Wavelength | 850nm | |
Achieve | 100m | |
| Cable Type | MMF | |
| Connectors | MPO | |
| Transmit power(dBm) | -4.6~4dBm | |
| Receiving sensitivity(dBm) | -6.3 | |
| Power consumption(W) | ＜8.5 | |
| Operating case temperature | 0~70℃ | |
| Warranty | 3 years | |

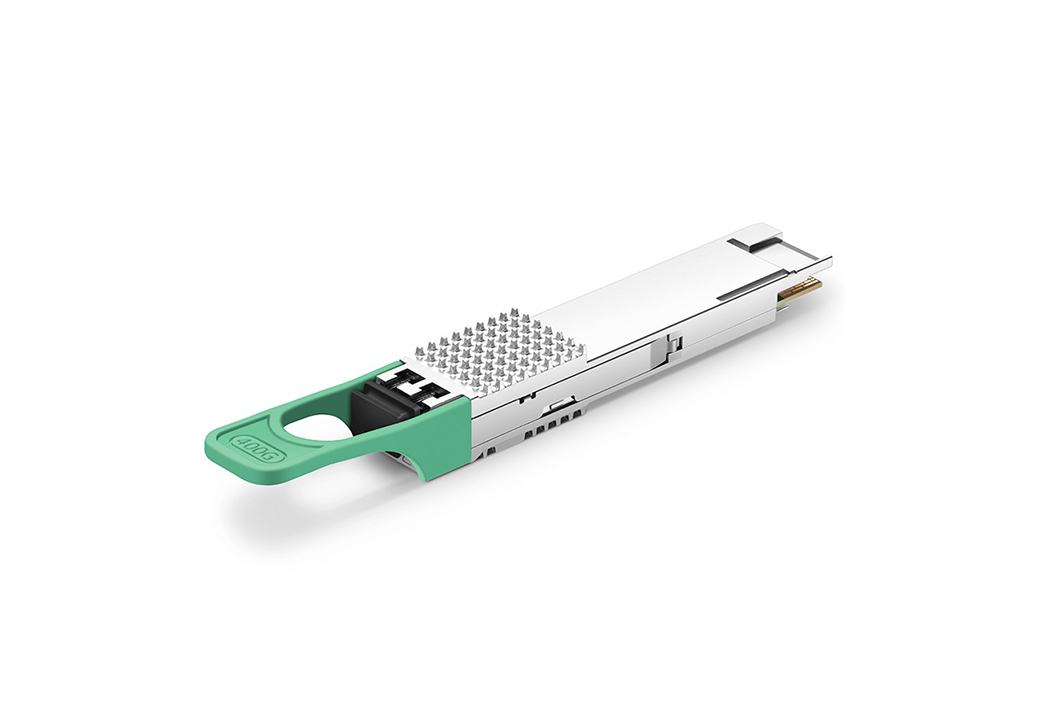

OSFP 400G DR4 500M Optical Transceiver Module | ||
 | Part Number | OSFP 400G DR4 |
| Form Factor | OSFP | |
| Data Rate | 400G | |
| Protocol | DR4 | |
| Wavelength | 13100nm | |
Achieve | 500m | |
| Cable Type | SMF | |
| Connectors | MPO | |
| Transmit power(dBm) | -2.9~4dBm | |
| Receiving sensitivity(dBm) | -5.9~4.0dBm | |
| Power consumption(W) | ＜9 | |
| Operating case temperature | 0~70℃ | |
| Warranty | 3 years | |

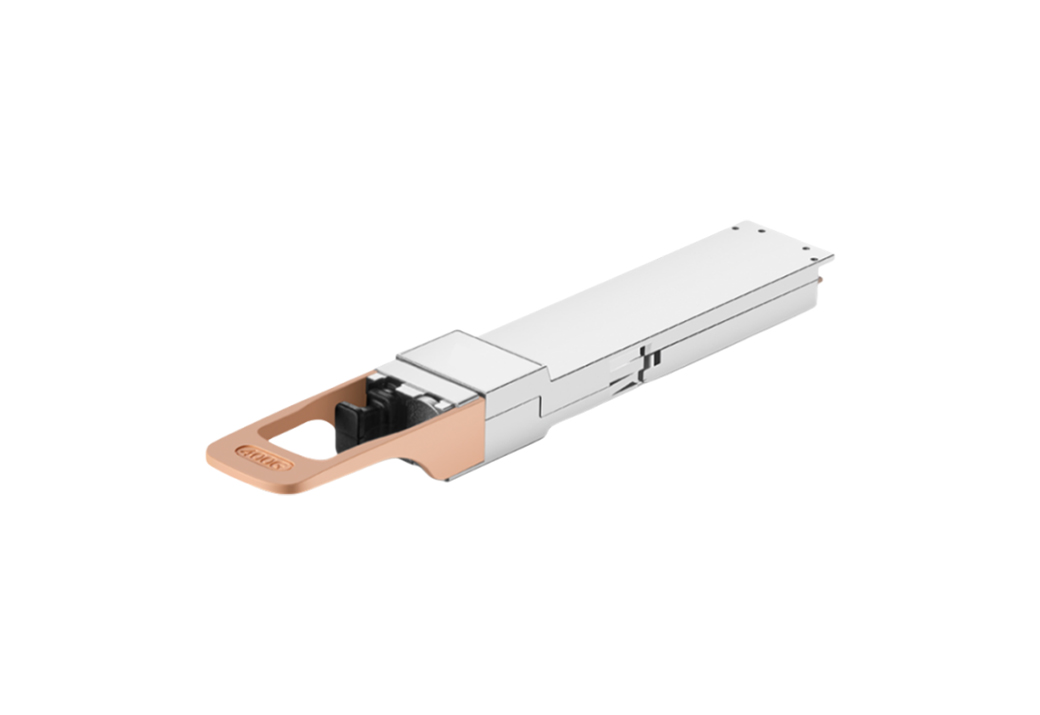

QSFP-DD 400G DR4 500M Optical Transceiver Module | ||
 | Part Number | QSFPDD-400G-DR4 |
| Form Factor | QSFPDD | |
| Data Rate | 400G | |
| Protocol | DR4 | |
| Wavelength | 1310nm | |
Achieve | 500m | |
| Cable Type | SMF | |
| Connectors | 2LC | |
| Transmit power(dBm) | -2.9~4.0 | |
| Receiving sensitivity(dBm) | -5.3 | |
| Power consumption(W) | ＜12 | |
| Operating case temperature | 0~70℃ | |
| Warranty | 3 years | |

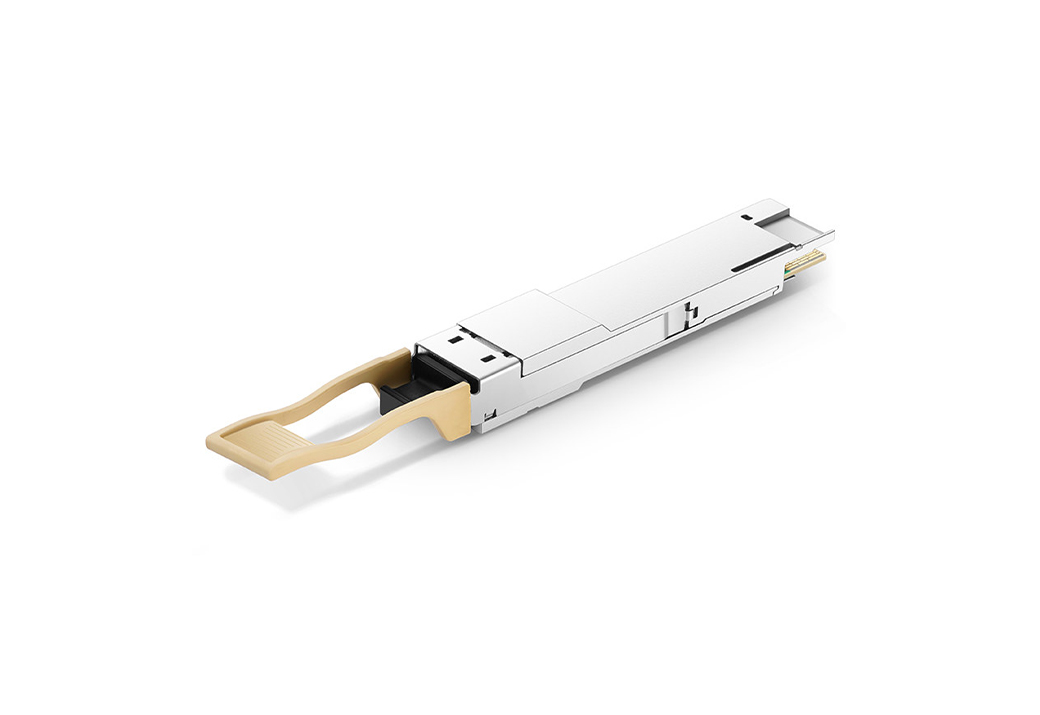

QSFP-DD 400G FR4 2KM Optical Transceiver Module | ||
 | Part Number | QSFPDD-400G-FR4 |
| Form Factor | QSFPDD | |
| Data Rate | 400G | |
| Protocol | FR4 | |
| Wavelength | 1310nm | |
Achieve | 2km | |
| Cable Type | SMF | |
| Connectors | 2LC | |
| Transmit power(dBm) | -3.3~3.5dBm | |
| Receiving sensitivity(dBm) | -5.9dBm | |
| Power consumption(W) | ＜12W | |
| Operating case temperature | 0~70℃ | |
| Warranty | 3 years | |
| QSFP-DD 400G SR8 100M Optical Transceiver Module | |
| Product Features • Hot-pluggable QSFP-DD form factor • Case temperature range of 0°C to +70°C • Maximum link length of 100m on OM4 • Optical with KP4 FEC +3.3V single supply • Power consumption < 10W • Operating case temperature commercial: 0°C to +70°C • MPO-16 APC connector • RoHS compliant Applications • 400G 100m on OM4 with FEC |
| OSFP 400G SR4 NDR 100M Optical Transceiver Module | |
| Product Features • Adaptive Tx input equalization • Programmable Rx output amplitude • Programmable Rx output pre-cursor • Programmable Rx output post-cursor • Supply voltage monitoring (DDM_Voltage) • Transceiver case temperature monitoring (DDM_Temperature) • Tx transmit optical power monitoring for each channel (DDM_TxPower) • Tx bias current monitoring for each channel (DDM_TxBias) • Rx receive optical power monitoring for each channel (DDM_RxPower) • Warning and alarm indication for each DDM function • Tx and Rx LOL and LOS indication • Tx fault indication • Host and line side loopback function • Host and line side PRBS generator and checker function • CDB firmware upgrade function • Versatile diagnostic monitoring (VDM) function (optional, additional power consumption) • CMIS Other functions defined in |
| OSFP 400G DR4 500M Optical Transceiver Module | |
| Product Features • Supports IB and ETH • Up to 106.25 • Gbps data rate per channel through PAM4 modulation • 4 duplex channel transmitters and receivers • 4x100G PAM4 SIP modulator • Single MPO-12 connector socket optical interface compatible • Single +3.3V power supply • Hot-swappable OSFP RHS form factor • Maximum link length of 500m on 12-core MPO SM fiber • Low power consumption: <9W • Operating temperature range: 0℃ ~ +70℃ • International Class 1 laser safety certification • RoHS6.0 compliant Applications • 400G Ethernet • InfiniBand support • Switch and router connectivity • Data centers • Other 400G interconnects |
| QSFP-DD 400G DR4 500M Optical Transceiver Module | |
| Product Features • Aggregation Mode 400GBASE-DR4 compatible with 4x 53.125GBd PAM4 400GAUI-8 compatible with 8x 26.5625 GBd PAM4 • Breakout Mode 4x 100GBASE-DR compatible 53.125GBd PAM4 100GAUI-2 compatible 2x 26.5625 GBd PAM4 • QSFP-DD MSA compatible • MPO-12 connector, 8° angle end face • Power consumption <12 W • Operating temperature 0~70℃ • CMIS 4.0 management interface Applications • Data Center 400GE 500 m SMF link • 400GE to 4x 100GE breakout, over 500 m • Switch/router interconnect |
| QSFP-DD 400G FR4 2KM Optical Transceiver Module | |
| Product Features • Compliant with QSFP-DD MSA • Compliant with 400G FR4 specification in 100G Lambda MSA • 4 CWDM channel MUX/DEMUX design • 8x53.125Gb/s PAM4 electrical interface (400GAUI-8) • Maximum power consumption 12W • LC duplex connector • Single-mode fiber transmission distance with FEC up to 2 km • Operating temperature: 0~70℃ • Single 3.3V power supply • RoHS-6 compliant Applications • 400G Ethernet • Data center applications • Enterprise network Compliance • QSFP-DD MSA • 400G-FR4 Technical Specifications • CMIS Rev4.0 • RoHS Compliant • GR-468-CORE |
