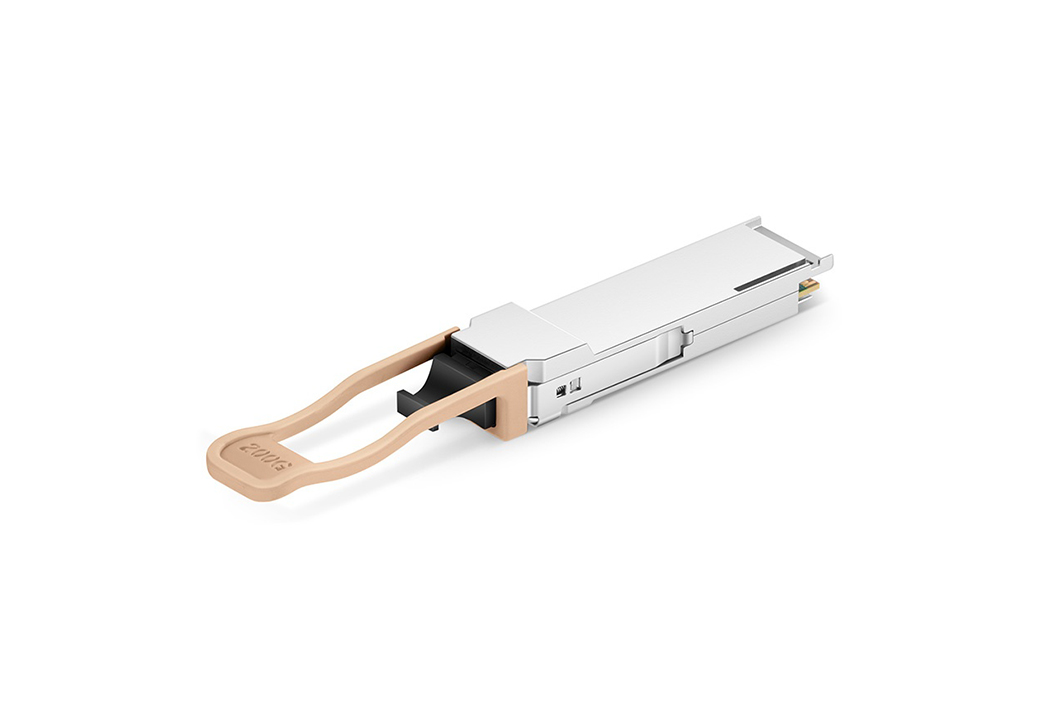

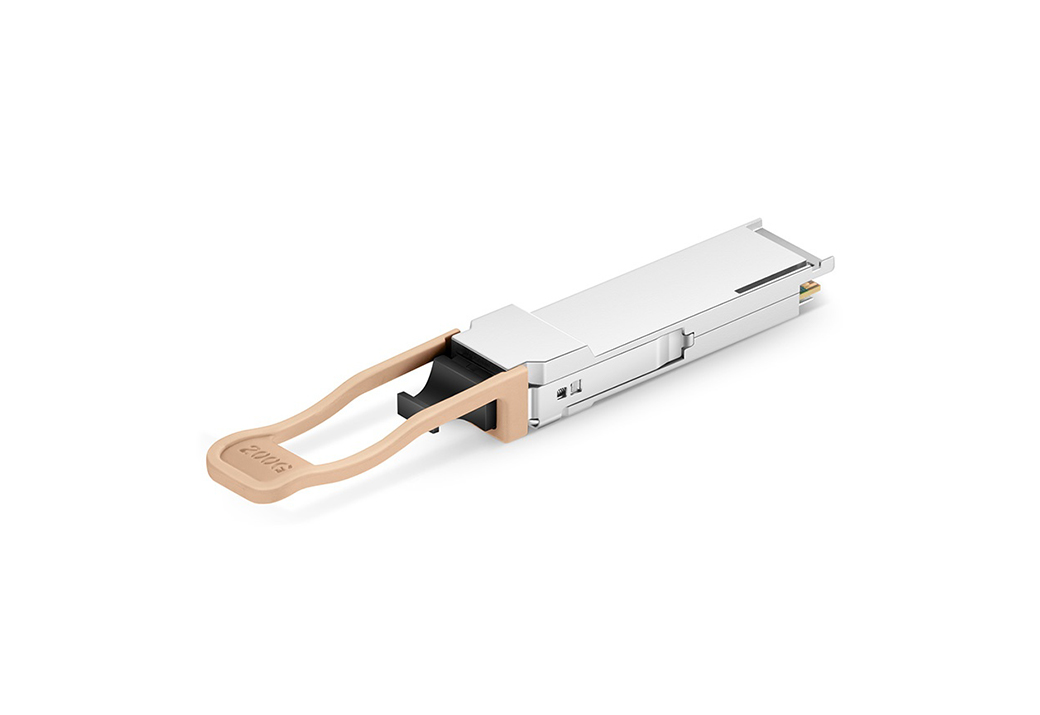

QSFP56 200G SR4 100M Optical Transceiver Module
	Part Number	QSFP56-200G-SR4
	Form Factor	QSFP56
	Data Rate	200G
	Protocol	SR4
	Wavelength	850nm
	Achieve	100m
	Cable Type	MMF
	Connectors	MPO
	Transmit power(dBm)	-3~3dBm
	Receiving sensitivity(dBm)	-6.5
	Power consumption(W)	<5
	Operating case temperature	0~70℃
	Warranty	3 years

QSFP56 200G SR4 100M Optical Transceiver Module

Product Features

• QSFP56 serial optical interface

• 4x50G PAM4 retimed 200GAUI-4 C2M electrical interface

• MPO-12 connector

• 4-channel VCSEL array and 4-channel PIN photodetector array

• Maximum link length of 70m on OM3 and 100m on OM4

• Compliant with QSFP MSA standard

• Hot-swappable QSFP56 form factor

• Compliant with SFF8636 Rev 2.10a standard

• Supported protocols: IEEE 802.3cd compliant

• Low power consumption: less than 5W in the temperature range of 0 to 70℃

Applications

• 200GBASE-SR4 200G Ethernet

• Data Center
