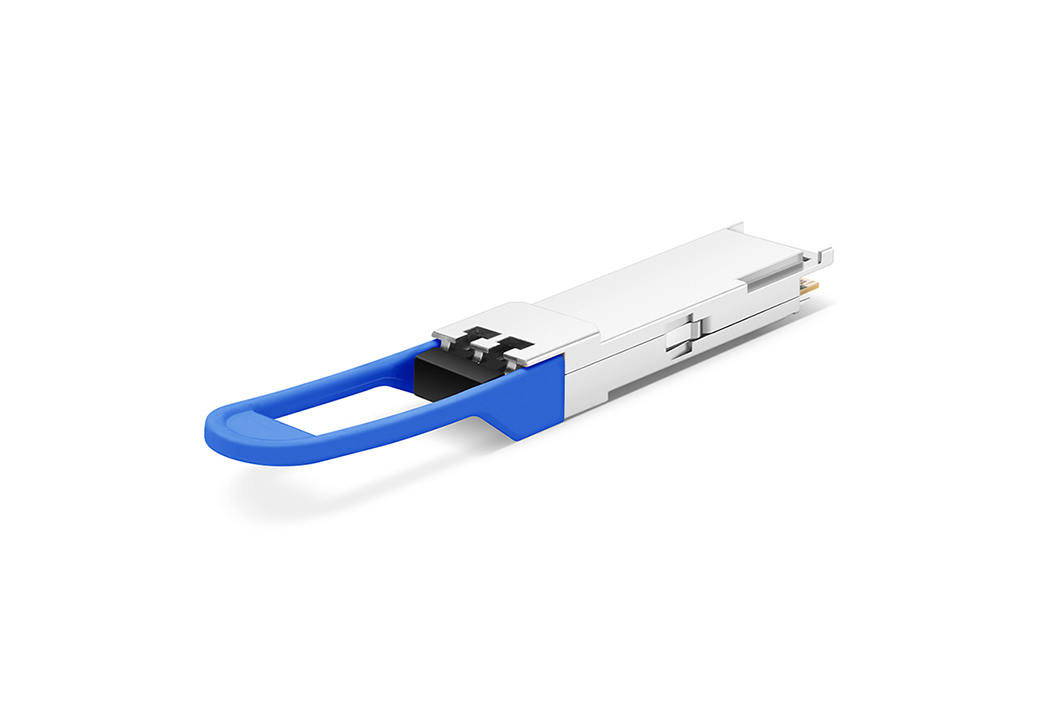

QSFP28 100G SR4 100M 850nm Optical Transceiver Module | ||
 | Part Number | QSFP28-100G-SR4 |
| Form Factor | QSFP28 | |
| Data Rate | 100G | |
| Protocol | SR4 | |
| Wavelength | 850nm | |
Achieve | 100m | |
| Cable Type | MMF | |
| Connectors | 2LC | |
| Transmit power(dBm) | -6~2.4 | |
| Receiving sensitivity(dBm) | -10.3 | |
| Power consumption(W) | <2.5 | |
| Operating case temperature | 0~70℃ | |
| Warranty | 3 years | |

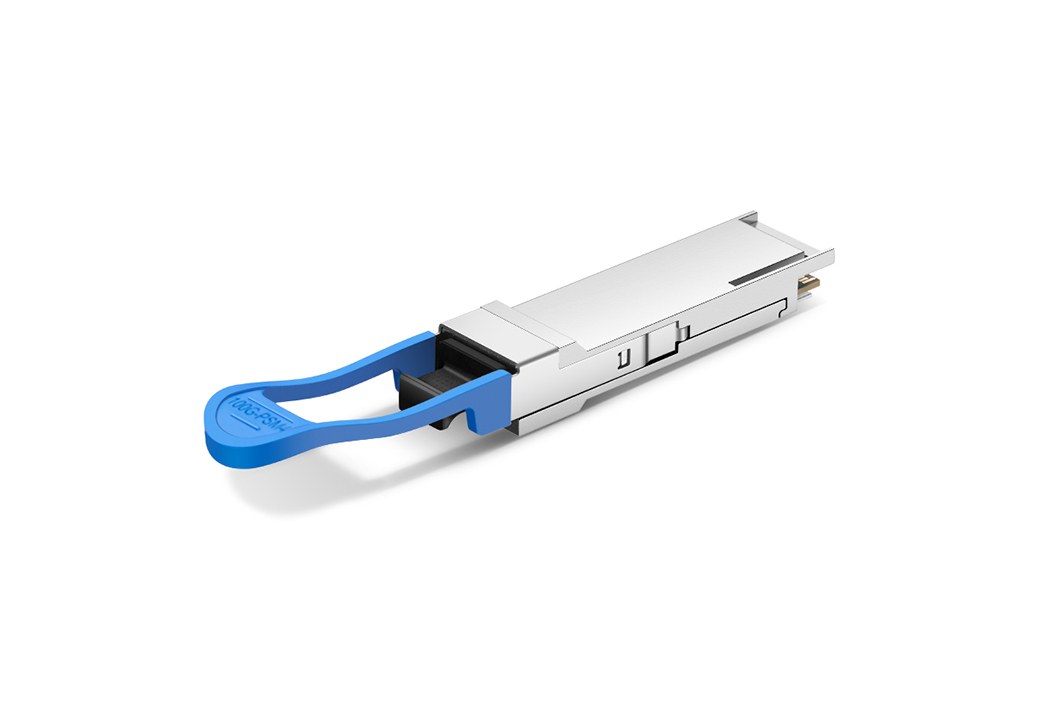

QSFP28 100G LR4 10KM 1310nm Optical Transceiver Module | ||
 | Part Number | QSFP28-100G-LR4 |
| Form Factor | QSFP28 | |
| Data Rate | 100G | |
| Protocol | LR4 | |
| Wavelength | 1310nm | |
Achieve | 10km | |
| Cable Type | SMF | |
| Connectors | 2LC | |
| Transmit power(dBm) | -4.3~4.5 | |
| Receiving sensitivity(dBm) | -8.6 | |
| Power consumption(W) | <4 | |
| Operating case temperature | 0~70℃ | |
| Warranty | 3 years | |

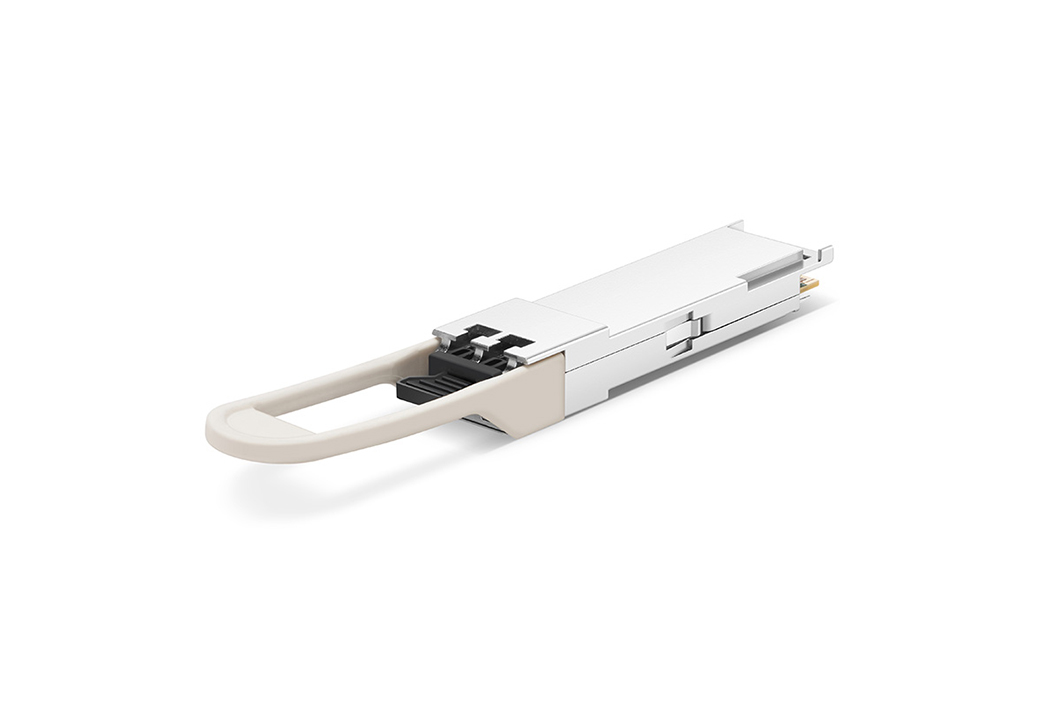

QSFP28 100G PSM4 2KM 1310nm Optical Transceiver Module | ||
 | Part Number | QSFP28-100G-PSM4 |
| Form Factor | QSFP28 | |
| Data Rate | 100G | |
| Protocol | PSM4 | |
| Wavelength | 1310nm | |
Achieve | 2km | |
| Cable Type | SMF | |
| Connectors | MPO | |
| Transmit power(dBm) | -6~2 | |
| Receiving sensitivity(dBm) | -11.35 | |
| Power consumption(W) | <3.5 | |
| Operating case temperature | 0~70℃ | |
| Warranty | 3 years | |

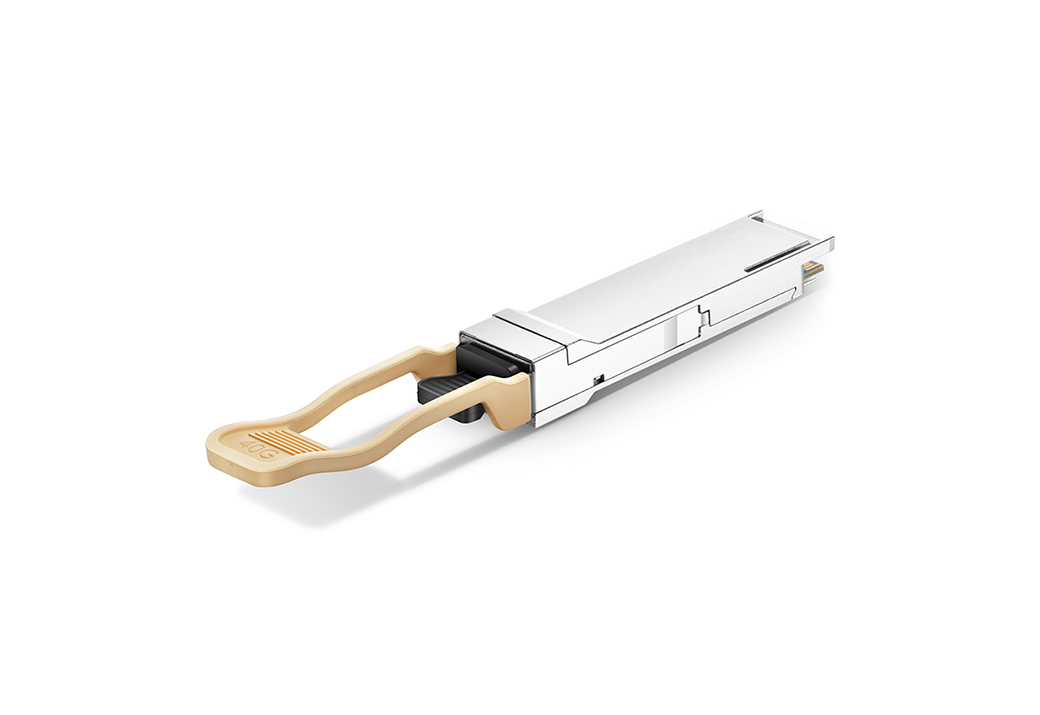

QSFP28 100G CWDM4 2KM 1310nm Optical Transceiver Module | ||
 | Part Number | QSFP28-100G-CWDM4 |
| Form Factor | QSFP28 | |
| Data Rate | 100G | |
| Protocol | CWDM4 | |
| Wavelength | 1310nm | |
Achieve | 2km | |
| Cable Type | SMF | |
| Connectors | 2LC | |
| Transmit power(dBm) | -6.5~2.5 | |
| Receiving sensitivity(dBm) | -10 | |
| Power consumption(W) | <3.5 | |
| Operating case temperature | 0~70℃ | |
| Warranty | 3 years | |

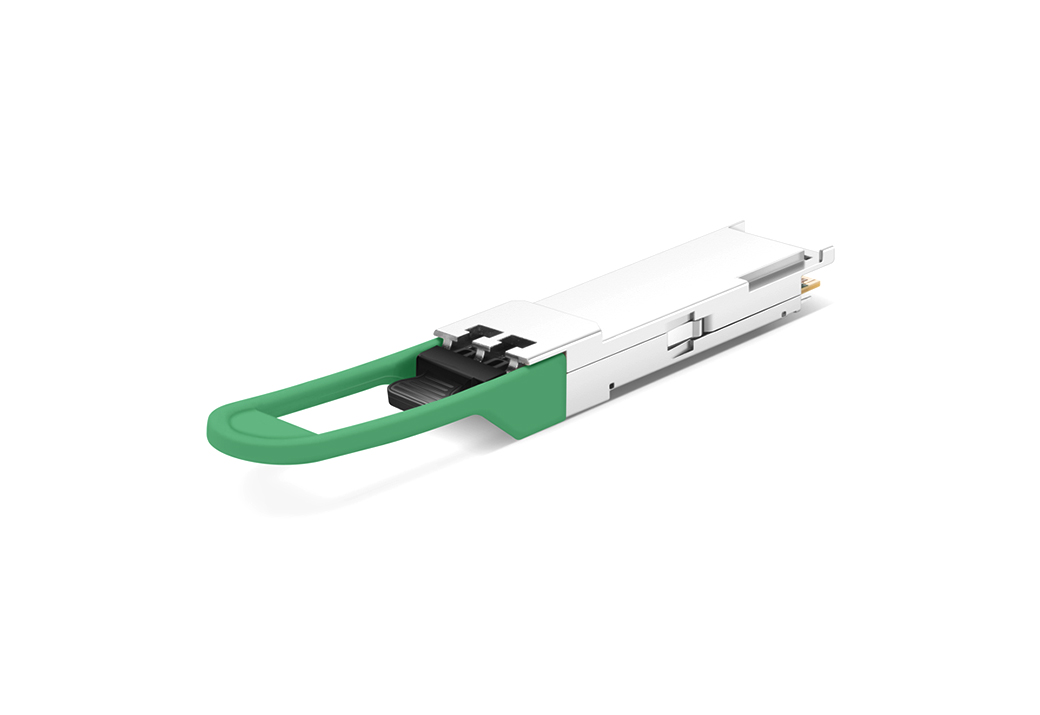

QSFP28 100G ZR4 80KM 1310nm Optical Transceiver Module | ||
 | Part Number | QSFP28-100G-ZR4 |
| Form Factor | QSFP28 | |
| Data Rate | 100G | |
| Protocol | ZR4 | |
| Wavelength | 1310nm | |
Achieve | 80km | |
| Cable Type | SMF | |
| Connectors | 2LC | |
| Transmit power(dBm) | 2.0~6.5 | |
| Receiving sensitivity(dBm) | -28 | |
| Power consumption(W) | <6.5 | |
| Operating case temperature | 0~70℃ | |
| Warranty | 3 years | |
QSFP28 100G DR1 500M Optical Transceiver Module | ||
 | Part Number | QSFP28-100G-DR1 |
| Form Factor | QSFP28 | |
| Data Rate | 100G | |
| Protocol | DR1 | |
| Wavelength | 1310nm | |
Achieve | 500m | |
| Cable Type | SMF | |
| Connectors | 2LC | |
| Transmit power(dBm) | -2.9~4 | |
| Receiving sensitivity(dBm) | -3.9 | |
| Power consumption(W) | <4 | |
| Operating case temperature | 0~70℃ | |
| Warranty | 3 years | |
| QSFP28 100G SR4 100M 850nm Optical Transceiver Module | |
| Product Features • Supports 103.1Gb/s aggregate bit rate • 4x25Gb/s electrical interface • Maximum link length of 100m over OM4 multimode fiber • Hot-swappable QSFP28 footprint • Single MPO 12 socket • Low power consumption • RoHS-6 compliant and lead-free • +3.3V single power supply • Supports digital diagnostic monitor interface • Commercial housing operating temperature: 0°C to +70°C Applications • 100GBASE-SR4 100G Ethernet |
| QSFP28 100G LR4 10KM 1310nm Optical Transceiver Module | |
| Product Features • Hot-swappable QSFP28 MSA form factor • IEEE 802.3ba 100GBASE-LR4 compliant • G.652 SMF transmission distance up to 10km • Single +3.3V power supply • Operating temperature: 0~70℃ • Transmitter: Cooled 4x25Gb/s LAN WDM TOSA • Receiver: 4x25Gb/s PIN ROSA • 4x28G electrical serial interface (CEI-28G-VSR) • Maximum power consumption 4W • Duplex LC socket • RoHS-6 compliant • Sealed TOSA Applications • 100GBASE-LR4 Ethernet links • InfiniBand QDR and DDR interconnects • Client 100G telecom connections |
| QSFP28 100G PSM4 2KM 1310nm Optical Transceiver Module | |
| Product Features • Four-channel full-duplex transceiver module • Up to 26Gbit/s data rate per channel • Up to 2km single-mode fiber transmission distance • Low power consumption <3.5W • Operating temperature 0~ 70℃ • 3.3V supply voltage • RoHS 6 compliant • Hot-swappable QSFP28 form factor • Single MPO connector socket • Built-in digital diagnostics Applications • 100G Ethernet • Proprietary high-speed interconnects • Data center |
| QSFP28 100G CWDM4 2KM 1310nm Optical Transceiver Module | |
| Product Features • Four-channel full-duplex transceiver module • Up to 26Gbit/s data rate per channel • Up to 2km transmission distance on single-mode fiber • Low power consumption <3.5W • Operating temperature 0~70℃ • 3.3V supply voltage • RoHS 6 compliant • Hot-swappable QSFP form factor • LC connector socket • Built-in digital diagnostics Applications • 100G Ethernet • Proprietary high-speed interconnects • Data center • 100G CWDM4 with FEC applications |
| QSFP28 100G ZR4 80KM 1310nm Optical Transceiver Module | |
| Product Features • Meets QSFP28 MSA requirements • Hot-swappable 38-pin electrical interface • 4 LAN-WDM channel MUX/DEMUX design • 4x25G electrical interface • Maximum power consumption 6.5W • LC duplex connector • Supports 103.125Gb/s aggregate bit rate • Single-mode fiber transmission distance up to 80km • Operating temperature: 0~70℃ • Single 3.3V power supply • RoHS 2.0 compliant Applications • 100GBASE-ZR4 100G Ethernet • Telecom Network |
| QSFP28 100G DR1 500M Optical Transceiver Module | |
| Product Features • Supports optical data rate 106.25 Gb/s PAM4 • Supports electrical interface 4×25.78125 Gb/s NRZ • Transmission distance up to 500m via SMF with FEC • QSFP28 pluggable form factor with LC connector • Maximum power consumption 4W • Operating temperature: 0℃~70℃ • 3.3V power supply • I2C management interface Applications • 100G Ethernet • Data center applications • Enterprise networks Compliance • SFF-8636 • SFF-8665 • SFF-8679 • IEEE 802.3-2018 / 802.3cd |
